Hydraulic Station Pipeline Bursting Equipment with Threaded Pull Rods and Compact Structure for Trenchless Drilling

Hydraulic Station Pipeline Bursting Equipment with Threaded Pull Rods and Compact Structure for Trenchless Drilling
Hydraulic Station Pipeline Bursting Equipment with Threaded Pull Rods and Compact Structure for Trenchless Drilling
Hydraulic Station Pipeline Bursting Equipment with Threaded Pull Rods and Compact Structure for Trenchless Drilling Hydraulic Station Pipeline Bursting Equipment with Threaded Pull Rods and Compact Structure for Trenchless Drilling Hydraulic Station Pipeline Bursting Equipment with Threaded Pull Rods and Compact Structure for Trenchless Drilling Hydraulic Station Pipeline Bursting Equipment with Threaded Pull Rods and Compact Structure for Trenchless Drilling Hydraulic Station Pipeline Bursting Equipment with Threaded Pull Rods and Compact Structure for Trenchless Drilling Hydraulic Station Pipeline Bursting Equipment with Threaded Pull Rods and Compact Structure for Trenchless Drilling Hydraulic Station Pipeline Bursting Equipment with Threaded Pull Rods and Compact Structure for Trenchless Drilling Hydraulic Station Pipeline Bursting Equipment with Threaded Pull Rods and Compact Structure for Trenchless Drilling

Duży Obraz :  Hydraulic Station Pipeline Bursting Equipment with Threaded Pull Rods and Compact Structure for Trenchless Drilling

Szczegóły Produktu:
Miejsce pochodzenia: Chiny
Nazwa handlowa: Longway
Orzecznictwo: ISO9001
Numer modelu: KX50/80
Zapłata:
Minimalne zamówienie: 1
Cena: Zbywalny
Szczegóły pakowania: Według potrzeb klientów
Czas dostawy: 20-30 dni roboczych, które zostaną dostosowane w zależności od różnych produktów i zapasów
Zasady płatności: T/T
Możliwość Supply: 20-30 dni roboczych, które zostaną dostosowane w zależności od różnych produktów i zapasów
Kontakt

Hydraulic Station Pipeline Bursting Equipment with Threaded Pull Rods and Compact Structure for Trenchless Drilling

Opis
Podkreślić:

Hydraulic Station Pipeline Bursting Equipment

,

Threaded Pull Rods Pipeline Bursting Equipment

,

Compact Structure Pipeline Bursting Equipment

Pipeline Bursting Equipment Pipeline In-Situ Replacement System Trenchless Drilling Tool
Product Overview

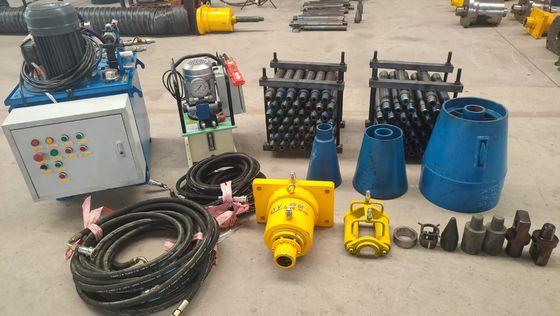

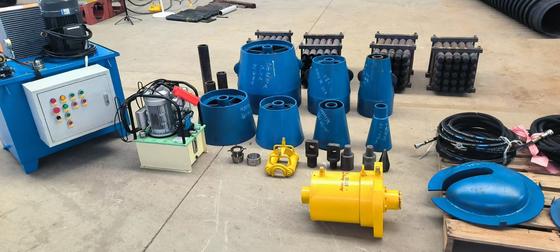

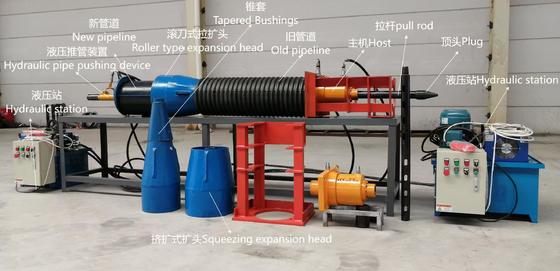

Our independently developed pipeline in-situ replacement system is designed for trenchless renovation of aging urban pipelines. The complete system includes:

  • Main unit with compact, lightweight design
  • Threaded pull rods with automatic retraction
  • Cone sleeves and pulling-expanding heads
  • Hydraulic pipe pushing devices
  • Dual-size hydraulic stations
  • Top heads for complete installation
Key Components

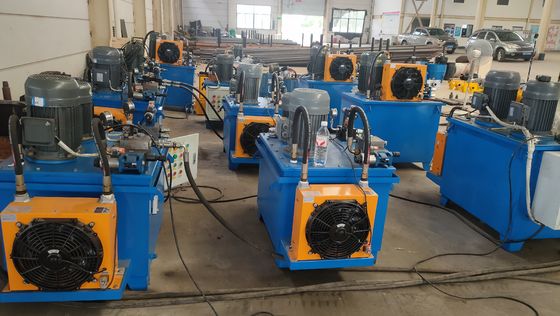

  • Hydraulic Station: Features automatic direction change and leakage self-protection with manual/automatic switching via electromagnetic valves. Remote control operation available.
  • Threaded Pull Rods: Insert-free design enables automatic rod retraction, reducing labor intensity and improving construction efficiency.
  • Pulling-Expanding Heads: Equipped with quenched rolling-type blades that prevent debris accumulation in old pipelines while extending service life.
  • Hydraulic Pipe Pushing Device: Works with slips and cone sleeves to securely lock new pipelines at any position.
  •

Technical Specifications

Project Unit KX50 KX80
Load KN 500 800
Maximum pull-back speed m/min 1.5 1.5
Minimum pull-back speed m/min 0.8 0.8
Power KW 4 7.5
Size of the host (length width and height) mm*mm*mm 480*400*400 600*400*400
Hydraulic station size (length width and height) mm*mm*mm 800*550*500 1200*1000*900
The host weight kg 120 280
Hydraulic station weight kg 140 400
Fit diameter of manhole mm 420 420
Require well dimensions (length) mm 800 1000
Rod specifications mm*mm Φ60*500 Φ68*600

Hydraulic Station Pipeline Bursting Equipment with Threaded Pull Rods and Compact Structure for Trenchless Drilling 0 Hydraulic Station Pipeline Bursting Equipment with Threaded Pull Rods and Compact Structure for Trenchless Drilling 1
Frequently Asked Questions
What is your delivery time?
Standard production time is approximately 20 days. In-stock items ship within 3 business days.
How do you ensure product quality?
Every drill rod undergoes rigorous quality inspections and performance testing before shipment to guarantee reliability and durability.
Do you accept sample orders?
Yes, we welcome sample orders for quality evaluation before larger purchases.
Are your drill pipes heat-treated?
All drill pipes and casings receive professional heat treatment to enhance structural strength and operational performance.
Do your drill pipes have anti-rust protection?
Each unit receives anti-rust paint or anti-corrosion oil coating before shipping. Galvanized options are available upon request.
